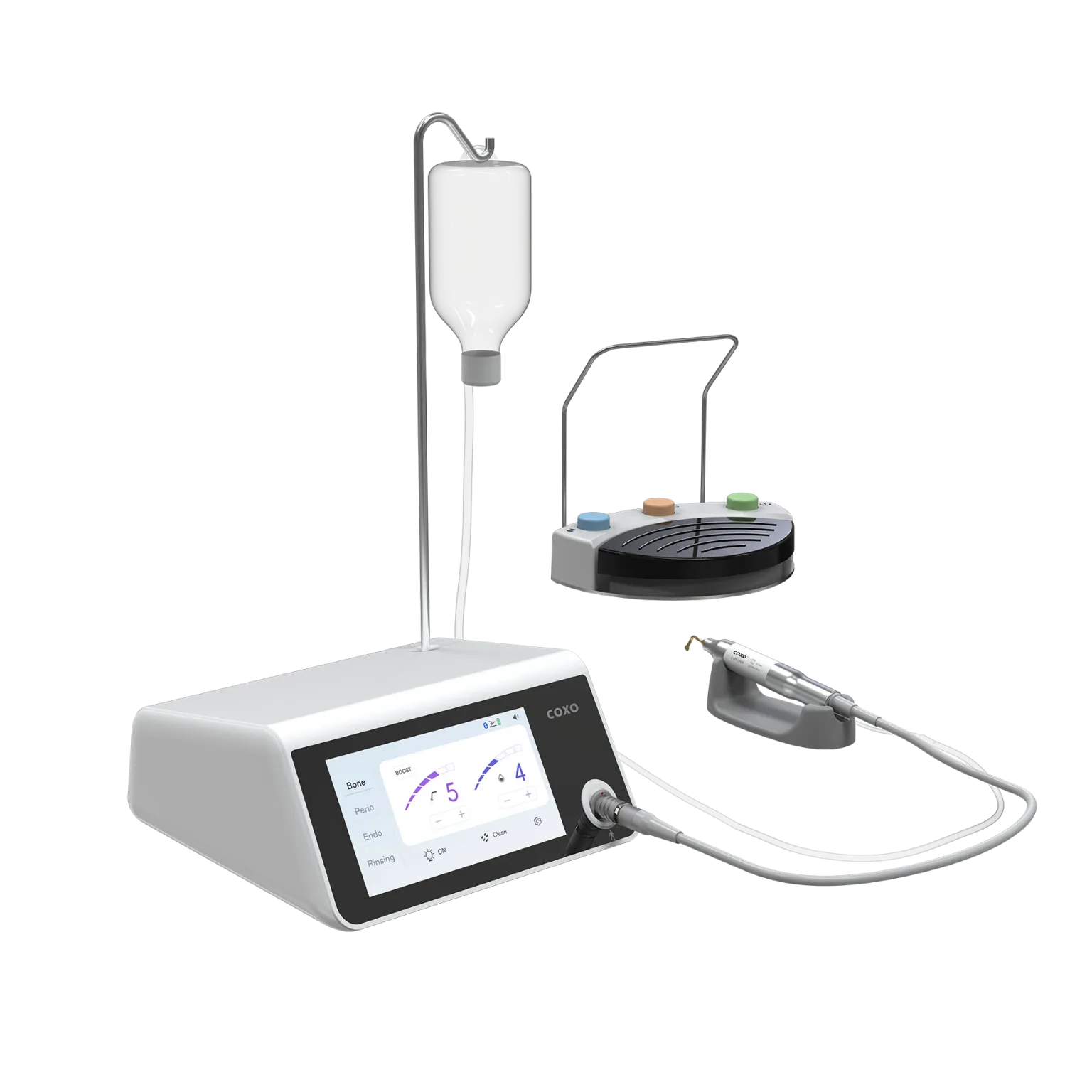

Ultrasonic Surgery System
LED light with Optical fiber
Help you see clearer
Disposable water tubes
Easier maintenance, Longer service life, Safer
Standard metal bracket and tips
PS1 PS2 PS4 PS5 PL3 PC1
Precise power self-adjustment design
The vibration frequency is 24-36kHz, which can effectively cut bone tissue and minimize the risk of soft tissue damage.
Horizontal Amplitude (Vertical Direction) ＜20um
Radial Amplitude (Horizontal Direction)＜80um
Longer force-limiting wrench
Easy and safe to change tips
4 working modes
Bone surgery mode Periodontal Treatment Mode Endo treatment mode
Ultra strong power
-Function
1.Higher power than the regular 7th gear, providing stronger cutting ability.
-Activation
1. Click the “BOOST” button on the regular gear.
2. Or hold down the foot pedal power adjustment.
-Exit
1. Click the “BOOST” button again.
2. Use the foot pedal power adjustment.
3. Click the “—” button on the screen to return to the regular 7th gear.
7 Working tip
various models to meet different surgical needs.
– Input voltage: 100-240V, suitable for global use
– Power: 150VA, efficient and energy-saving
– Water flow: 20-100ml/min, precise control
– Tip amplitude: main amplitude <80um, lateral amplitude <20um, minimally invasive cutting
